EMI Shielding Design Checklist: 7 Questions to Answer Before You Specify

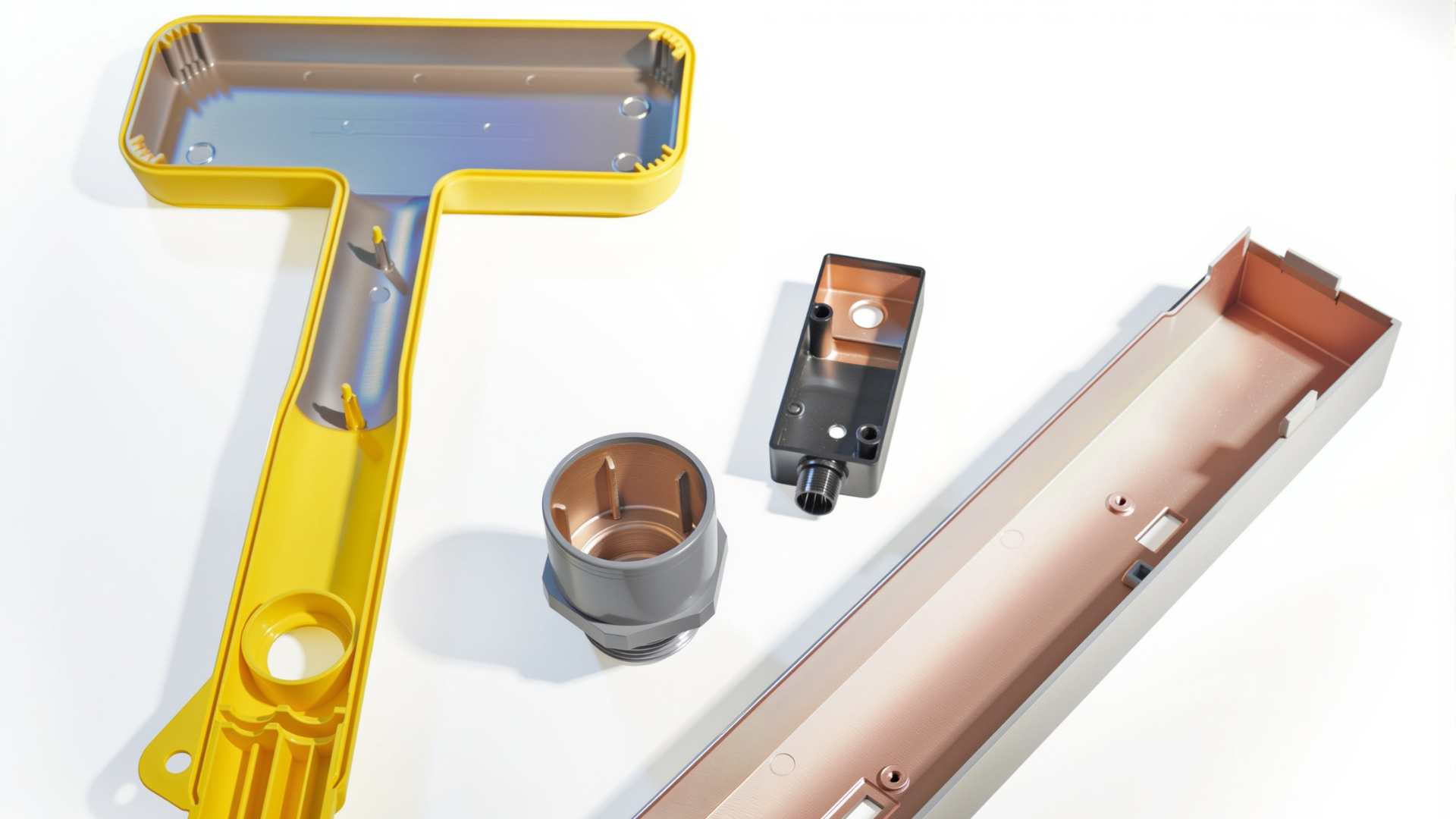

Good EMI shielding design starts long before a coating is applied. Before you specify a shielding approach for a plastic enclosure, you should be able to answer seven questions: your attenuation target, the frequency range of concern, the substrate, the grounding strategy, which areas must stay uncoated, how apertures and connector openings will be handled, and how compliance will be verified. Answering them up front turns the shielding house into a partner instead of a guesser — and usually saves a respin.
1. What Is Your Attenuation Target?
Attenuation is the headline number on any shielding specification. As reference points, vacuum-metalized aluminum delivers more than 60 dB at just 0.5–25 microns, while conductive spray coatings typically deliver 40–80 dB depending on the metal system and thickness. Your target should come from your EMC plan: how far over the emissions limit did the unshielded product scan, and what margin do you want against unit-to-unit variation? Specify the number you need, not the biggest number you have seen — over-specifying attenuation drives thickness, metal choice, and cost without improving the product.
2. What Frequency Range Are You Shielding?
A shield that performs well against high-frequency radiated emissions behaves differently at lower frequencies, where more conductive material is generally required for the same effect. Identify the offending frequencies from your pre-compliance scan — clock harmonics, switching supply fundamentals, high-speed interfaces — and share that range with your coating applicator. It directly informs whether a thin metalized film or a heavier nickel-, copper-, or silver-based spray system is the better fit for the job.
3. What Is the Substrate?
Shielding coatings must adhere for the life of the product. ABS, ABS/PC, and polycarbonate accept coatings readily; polyolefins such as PP and HDPE need additional surface preparation; nylon (PA), polystyrene, SAN, PET, and 3D-printed parts each have their own handling requirements. Substrate also sets temperature limits for processing and service. Name the resin — including filler content — on the RFQ, because “plastic” is not a substrate.
4. How Will the Shield Be Grounded?
A conductive coating that floats electrically is a partial solution at best. Decide early how the coated surface connects to chassis or circuit ground: spring fingers from the PCB, conductive gaskets in a groove, screw bosses that are deliberately coated so the fastener makes contact, or a defined pad where a ground strap lands. This is a common failure point in EMI shielding design reviews, and it is far cheaper to add a grounding boss in CAD than to retrofit one in tooling.
5. Which Areas Must Be Masked?
List every surface that must remain uncoated: cosmetic exterior faces, gasket grooves that need a controlled seal, snap-fit features where added material could change engagement, antenna windows that must stay RF-transparent, and any surface that will be bonded or welded downstream. Masking boundaries drawn along natural part features are easier to hold than boundaries floating mid-wall. Mueller builds masking fixtures in-house, so a clear masking drawing translates directly into repeatable production parts.
6. How Are Apertures and Connector Openings Handled?
Electromagnetic energy leaks through openings, and a long narrow slot leaks far more readily than its area suggests — the largest dimension of the opening is what matters. Inventory every aperture: ventilation slots, display windows, LED light pipes, seams between housing halves, and connector cutouts. Where possible, break long slots into rows of shorter openings, design housing seams with overlapping conductive surfaces, and make sure shielded connector shells actually bond to the coated surface rather than sitting in an uncoated pocket. The coating and the mechanical design have to solve this together.
7. How Will You Verify Compliance?
Define verification at two levels. At the product level, plan the formal EMC testing your market requires — FCC Part 15 for most U.S. commercial electronics, or MIL-STD-461 for defense hardware — with a pre-compliance scan before formal testing. At the part level, agree with your applicator on acceptance checks: surface resistance measurement, coating thickness verification, and adhesion testing, with documentation to match your quality system. Mueller operates under AS9100:2016 and ISO 9001:2015 and supports PPAP-style validation for automotive programs, so part-level verification can be matched to whatever your program requires. The full shielding service is described on the EMI/RFI/ESD shielding page.
Putting the Checklist to Work
With these seven answers in hand, process selection becomes fast: production volumes, tight tolerances, and weight-critical parts favor vacuum metalizing; complex interior geometry, oversized enclosures, and selective shielding zones favor a conductive spray coating. An applicator who runs both processes can recommend against its own default — which is exactly what you want from a shielding partner.
Work with Mueller Coatings
Mueller Coatings has applied EMI shielding from its 65,000 sq. ft. East Bridgewater, Massachusetts facility since 1955, with in-house fixturing, both spray and vacuum metalizing processes, and no minimum order quantity. Bring your checklist answers — complete or not — to the request a quote page and an applications engineer will help close the gaps.
